Pile foundations are essentially long, sturdy columns made from materials like steel, concrete, or timber, driven deep into the ground to support structures.
Pile foundation types include bored piling, driven piling, screw piling, sheet piling, and micro piles, each serving distinct structural support roles.
These foundations offer deep support, high load capacity, access in difficult soils, minimal vibration, and are adaptable to various ground conditions.

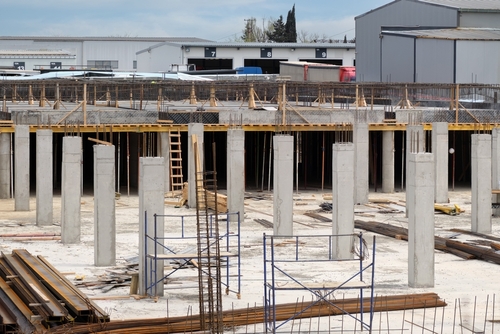

Pile foundations are long, sturdy columns made from materials like steel, concrete, or timber, driven deep into the ground to support structures. Imagine them as giant nails hammered into the earth to hold up a building.
Pile foundations in construction are used when the top soil layers aren't strong enough to support a structure on their own. Depending on how they work, there are different types, like piles that support weight directly on their ends (end-bearing piles) or those that rely on friction along their sides (friction piles). Pile foundations are crucial for large buildings or in areas with poor soil quality, ensuring the safety and stability of the construction.
Now, let's explore 5 main types of pile foundations, each suited for different building needs and ground situations:

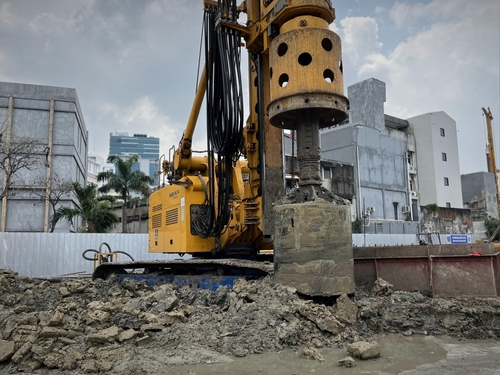

This method involves auguring into the ground to form a hole, which is then filled with concrete, casting the pile in place. It's especially suited for urban areas and close to existing buildings as it minimises vibration during installation.

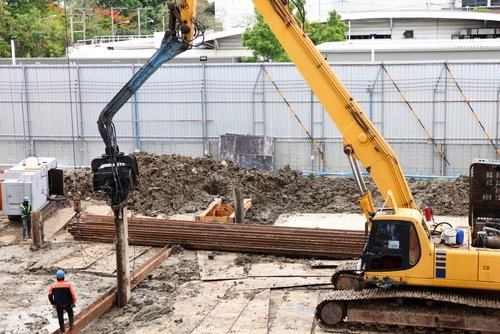

Piles are driven or hammered into the ground using vibration, ideal for foundations in non-cohesive soils, areas with high water tables, or soils containing contaminants. Driven piles can be made on-site with temporary or permanent casings or off-site as pre-cast piles using steel, timber, wood, concrete, or a combination of these materials.

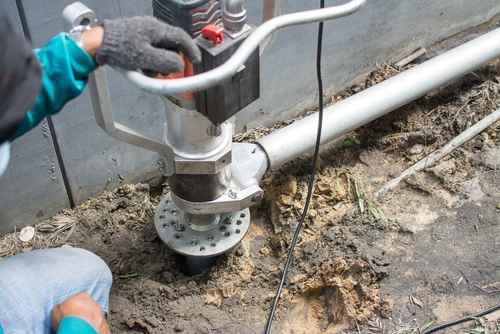

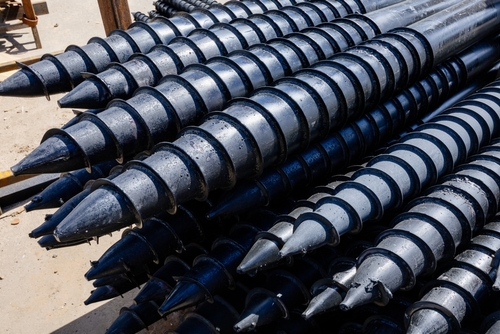

This method uses circular hollow galvanised steel pile shafts with one or more steel helices attached, fastened into the ground, similar to a screw into wood. It minimises spoil from installation and can be a more sustainable and cost-effective alternative.

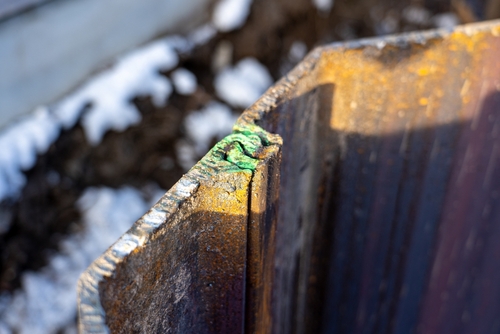

Made from a series of interlocking steel sheets, sheet piles create permanent or temporary retaining walls necessary for large excavations. This method is cost-effective for temporary soil retention as the sheets can be removed and reused.
Mini or micro piles have diameters ranging from 100 mm to 400 mm. Their distinguishing feature is their application in locations with restricted access where traditional piling rigs cannot operate, making them suitable for commercial and domestic developments in confined urban spaces.
Let's understand the key benefits of using pile foundations in construction.
Pile foundations reach deeper underground to stronger soil layers, making buildings stable and secure, even when the topsoil is weak or too loose to support heavy structures.
Pile foundations can go past the wet soil to a solid base that won't shift or settle suddenly in areas with a lot of water in the soil, like near rivers or the sea.
Some pile types, like bored piles, are installed without shaking the ground too much, which means they're safe to use near existing buildings and structures without risking damage.
There's a pile for almost every situation, whether the site is cramped, the ground is rocky, or there's a lot of water in the soil, making them a go-to choice for various construction projects.
Methods like screw piling produce less waste and are less disruptive to the environment, as they don't require digging up huge amounts of dirt. This makes them a more sustainable option.
Also Read: What is Soil Exploration
We've understood the advantages of pile foundations; now, let's explore the different materials used and their specialised applications.

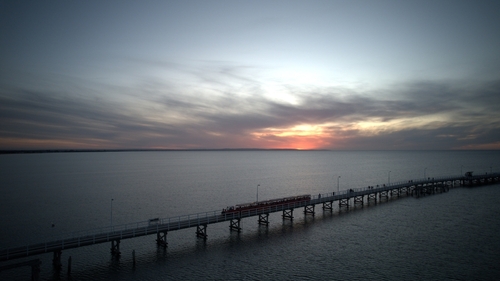

They're perfect for projects where you don't need to support super-heavy buildings or when you're working on a tight budget. Timber is great for projects near water, like piers or docks, but it's important to remember that wood can rot, so these piles work best above the groundwater level or in freshwater.
Concrete is like the superhero of building materials—powerful and lasting a long time. There are two types: precast, which is made at a factory and then brought to the site, and cast-in-place, where the concrete is poured into a hole in the ground on the spot. Concrete piles are a go-to for tall buildings or big bridges because they can handle much weight and won’t rust or rot.

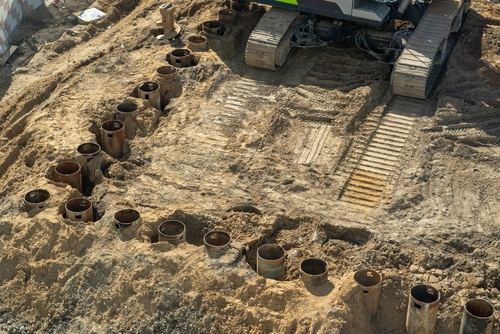

Steel piles are super strong and can be driven through hard soil or rock layers. They're used when the building is hefty or the ground is tough. Plus, they can be reused and recycled if they're ever removed, which is an eco-friendly bonus.

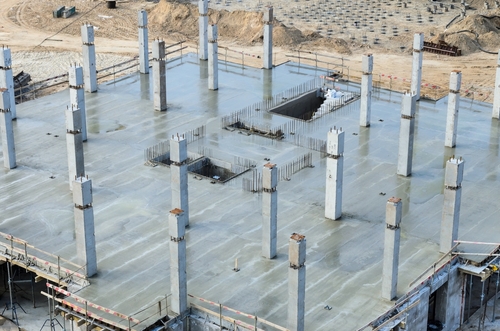

Composite piles might have a lower section made of steel for strength and penetration through tough soil, with an upper section made of concrete to carry the load and resist corrosion. They're used when engineers need to combine the strengths of both materials, like durability and load-bearing, for complex projects where a single material wouldn't be the best fit.
Also Read: A Guide to Building Foundations for a House
Understanding pile foundations in construction offers insight into their diverse advantages, equipping homeowners with the knowledge to select the most suitable type for their projects. This crucial decision-making ensures construction projects' stability, durability, and cost-effectiveness, laying a solid foundation for future development and innovation in the field.
The size of piles in foundation construction can vary depending on the specific project requirements. Typically, piles range from 30 cm to 120 cm in diameter, with larger diameters used for heavier loads.
The depth of piling construction is typically determined by factors such as soil conditions, load-bearing capacity required, and the structure being supported. Depths can range from a few meters to over 50 meters deep.
The minimum distance between piles is usually recommended to be at least three times the diameter of the pile. This distance helps ensure that the piles do not interfere with each other structurally and allows for proper load distribution.
The length of piles can vary depending on soil conditions and load requirements. Pile lengths typically range from a few meters to over 30 meters for deep foundation applications.
The principle of pile foundation is to transfer structural loads through friction or end bearing to deeper, more competent soil or rock layers. Pile foundations are used to support structures on weak or compressible soils by transferring the building loads to a more competent stratum below.
