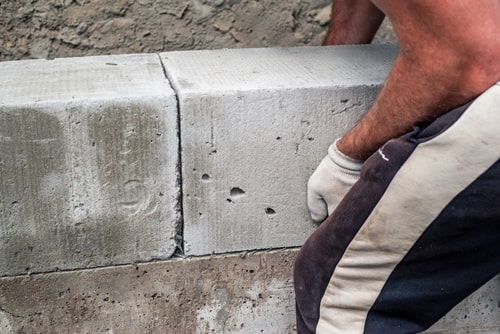

A construction joint is a planned break in concrete placed when pouring can’t be completed in one go. It connects new concrete to hardened concrete without compromising strength or stability by creating a safe point of bonding.
These joints help manage construction in stages, ensure load transfer, and reduce the risk of random cracking. Steel reinforcement bars often extend across the joint to maintain strength, and surface preparation helps with strong bonding.
Far from being a fault, a construction joint is a smart structural detail that supports durability and performance.
Tip: Always make sure the surface is clean and rough before adding new concrete. This improves bonding and reduces weak spots.
Various joints are used in construction to ensure structural integrity, allow movement, and improve durability. The type of joints in construction depends on the concrete element and the project design. Below are the most commonly used concrete joint types:

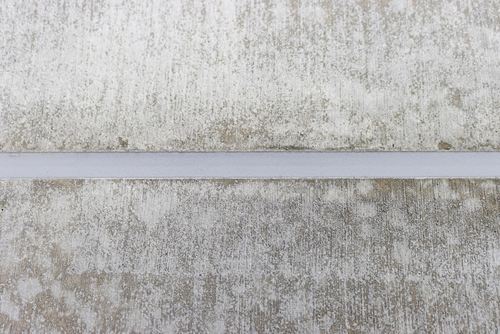

These joints are installed in concrete slabs to define the boundaries of individual placements. They allow controlled movement between slab sections and help transfer stresses caused by loads. They are placed according to a planned layout to avoid uneven cracking.

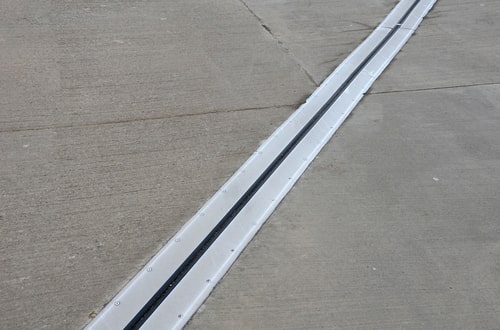

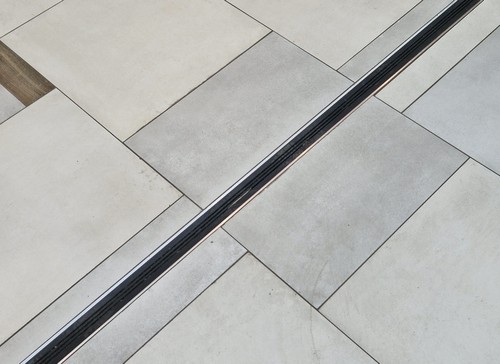

Expansion joints are placed where thermal or moisture-related expansion and contraction are expected. They create gaps between building elements to lessen stress from dimensional changes. For long structures (over 45 meters), multiple joints are recommended. In India, 30 meters of spacing is usually followed to avoid stress buildup.

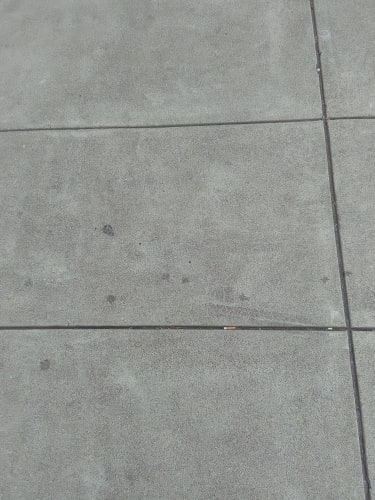

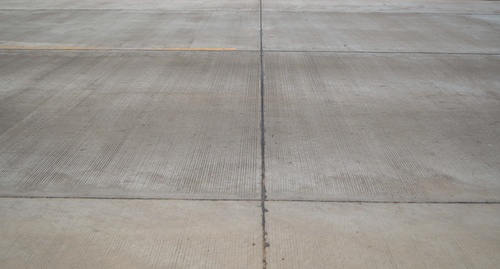

These are the most common joints in concrete pavements. Contraction joints are straight-line grooves designed to create a controlled weak point. They guide cracking caused by shrinkage and thermal contraction, so cracks form neatly along the groove instead of randomly.
Concrete isolation joints separate the concrete slab from walls, columns, or pipes. A flexible material is placed before pouring, preventing stress transfer between the slab and adjoining structures.
Tip: Use a strong, waterproof filler material in isolation joints to prevent moisture from entering the gap.

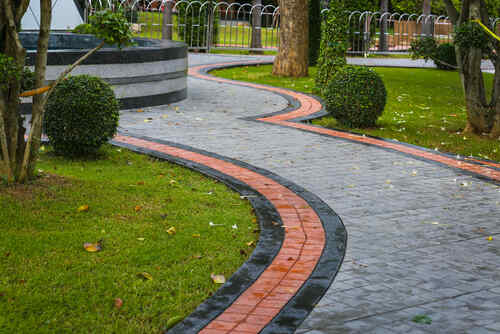

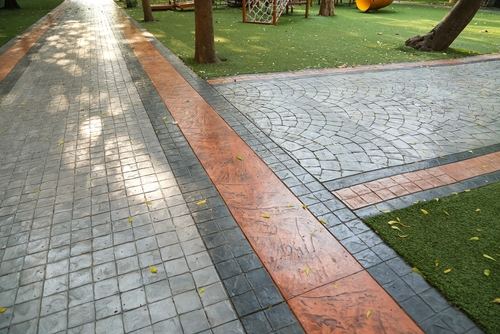

Used in stamped or patterned concrete, these joints deliver both design and functional needs. They penetrate only about 25% of slab depth to control surface cracks while keeping the pattern visually smooth.
These joints use steel bars called dowels to allow horizontal movement while transferring loads across slabs. They are commonly used in pavements to prevent slabs from sinking or lifting unevenly.

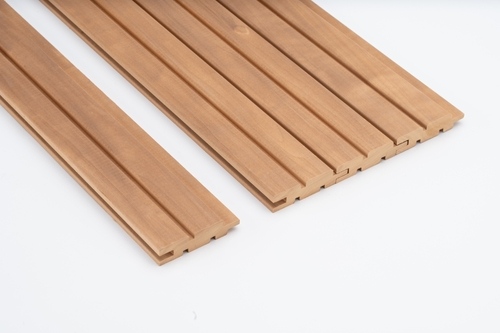

Often used in precast or wood construction, these joints connect two pieces through an interlocking “tongue” and “groove.” They offer tight alignment and improved joint strength.

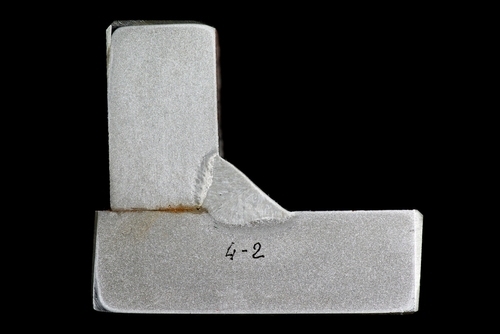

This simple joint is formed when two surfaces are placed together edge to edge. Because it has no interlock, extra reinforcement or adhesive is usually needed.

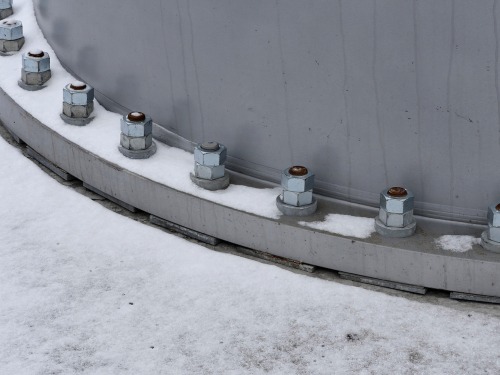

Common in steel and timber construction, these use bolts to connect members. They allow for disassembly and adjustments, making them ideal for movable structures.
The placement of joints in construction, such as construction joints in slab, expansion joints, and building joints, is critical for durability and crack control. Joints are not added randomly; they are planned based on design and stress distribution.
Key Placement Areas Include:
1. End of Pour Sequences
Construction joints are placed where concrete pouring stops, usually at the end of the workday or at planned section breaks.
2. Regular Intervals in Large Slabs
Expansion joints and contraction joints help manage temperature changes and shrinkage.
3. Near Columns, Beams, and Walls
Stress is higher here. Placing joints nearby helps release pressure safely.
4. Around Isolated Elements
Isolation joints are used around columns, staircases, or pipes to prevent stress transfer.
5. Corners and Re-entrant Angles
These areas crack easily, so adding joints prevents sudden damage.
Tip: Always mark joint locations before pouring to avoid cutting joints in the wrong places later.
Joints are essential to maintain the strength, appearance, and lifespan of concrete. Concrete shrinks, expands, and cracks due to temperature changes and loads. Joints like construction joints, contraction joints, and expansion joints help manage these stresses.
Key Reasons:
1. To Control Cracking
Concrete shrinks as it dries, and joints guide where cracks should form safely.
2. To Allow Movement
Joints handle expansion and contraction from temperature changes.
3. To Divide Large Pours
When entire areas can’t be poured at once, joints separate each section.
3. To Absorb External Forces
They absorb vibration and pressure from traffic, machinery, or seismic motion.
4. To Enhance Durability
Proper joints prevent water entry and slow down long-term damage.
The effectiveness of any joint depends on the materials used. Different concrete joint types need specific materials for flexibility and durability.
Common Materials:
Used in expansion and isolation joints, fillers are compressible materials that allow movement.
Examples: Bitumen boards, cork, rubber, foam, or fiberboard.

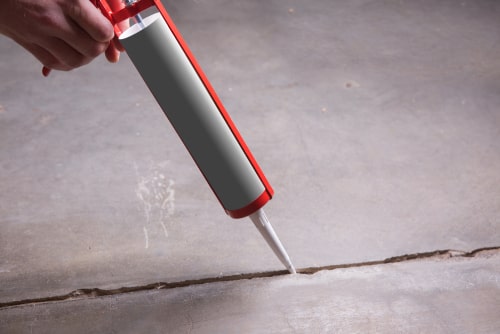

Applied to the surface of joints to prevent water, dust, and debris from entering. They maintain flexibility and adhere well to concrete.
Examples: Polyurethane, silicone, polysulfide sealants.
Steel bars that provide load transfer across construction joints while allowing horizontal movement.
Examples: Used mainly in slabs and pavements.
Used in joints within water-retaining structures like tanks and basements to prevent leakage.
Examples: PVC waterstops, rubber waterstops, bentonite strips.
Joints are key to preventing cracks, managing movement, and ensuring your home stays strong over time. Each type plays a vital role in durability. You only get one chance to build your home right, so understanding the types of joints in construction helps you avoid future repair problems.
Knowing what a construction joint is as well as what types of joints there are in construction, and good planning will go a long way in ensuring cracks only happen where you want them, giving your concrete structure a long life.
It is best advised to have a structural engineer on board for designing and specifying the construction joints.
A construction joint is placed when concrete pouring is done in phases, allowing bonding between old and new concrete. An expansion joint, on the other hand, allows for thermal movement and prevents cracking due to expansion or contraction.
Surface preparation is key; you need to clean and roughen the surface, and then apply bonding agents.
Damaged joints are usually repaired by cleaning, resealing with sealants, or using epoxy injection for cracks. In severe cases, partial replacement or reinforcement may be required.
A cold joint is an unplanned interruption in pouring that can cause poor bonding. A construction joint is a planned interface that is prepared and reinforced to ensure strength and continuity.
Construction joint spacing varies by structure but is typically kept between 4.5 to 6 meters for slabs. The spacing should align with load distribution and stress points based on structural design.
