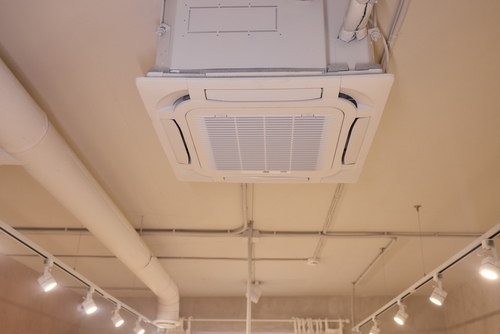

Types of Plenum Vent
In plenum HVAC setups, there are typically two types:
1. Supply Plenum: Pushes conditioned air out to the rooms.
2. Return Plenum: Draws used air back into the system for reconditioning or exhaust.
Common Plenum Locations in Construction
When it comes to plenums in construction, these enclosed air spaces are strategically positioned to optimise airflow within the HVAC system. You’ll typically find them in the following areas:
1. Above drop ceilings or beneath raised floors
2. Adjacent to air handlers or furnace units
3. Inside wall cavities, especially in larger residential or commercial buildings
Proper placement of plenum vents is critical. They must meet local fire safety and building codes, as these areas directly impact indoor air quality and overall system efficiency. Thoughtful design ensures both comfort and code compliance.
Tips for Homebuilders: Getting Plenum Vents Right
Understanding plenum systems can help you create homes with better air circulation, energy efficiency, and comfort. Here’s how to do it right:
1. Plan for Accessibility: Ensure plenum spaces are easy to access for future inspection or maintenance.
2. Use Fire-Rated Materials: Especially for plenum spaces in return air systems, which often carry unfiltered air.
3. Size Matters: Undersized plenums can cause airflow bottlenecks. Consult HVAC professionals during planning.
4. Seal Properly: Leaky plenums can reduce efficiency and introduce pollutants into the home.
