Lintels are beams over doors/windows that support the wall weight above.
Main types of lintels include wood (small spans), stone (heavy walls), brick (light loads), concrete (most common), and steel (long spans).
Key functions include load-bearing, preventing cracks/sinking, and adding wall stability.
RCC lintels are best for homes, precast or cast-in-situ.
Match material to span, load, and wall type; always check with an engineer.

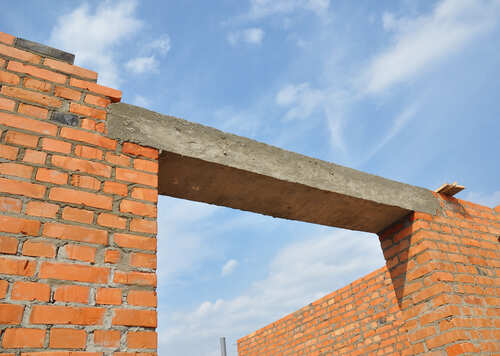

A lintel is a horizontal beam placed above openings such as doors, windows, and ventilators. It carries the weight of the wall or structure above and transfers it safely to the side supports, like columns or walls. In simple words, the lintel protects openings from sagging, cracking, or collapsing by acting as a strong bridge.
Lintels can be made from different materials, such as wood, stone, brick, concrete, or steel. The choice depends on the length, load, design, cost, and local availability. In modern home construction, concrete lintels and steel lintels are the most common because they offer high strength and long life.
| Tip: Always check with your engineer before deciding the lintel size and material, as it must match the load and span of the opening. |
Lintels may be hidden, but they play an important role in the safety and performance of a building.
1. They support the load above openings and prevent cracks around doors and windows.
2. They help maintain the alignment of walls and protect against sinking or structural changes.
3. They also allow larger openings in walls for doors, windows, and ventilators without weakening the structure.
In many cases, lintels are also used to carry extra loads such as sunshades, chajjas, and small balcony structures. A well-designed lintel beam ensures that your building remains safe and stable for years.
Tip: Never remove or cut into a lintel to pass pipes or cables without proper structural advice.
The performance of a lintel in construction depends on a few simple but important properties:
1. Strength: A lintel must be strong enough to carry the load of masonry and any extra loads above the opening without bending or cracking.
2. Stiffness: It should not sink under load, as this can cause cracks in the wall or frames below.
3. Durability: The material should resist weather, moisture, fire, termites, and corrosion, depending on where it is used.
4. Fire and moisture resistance: Concrete and steel lintels can be designed to resist fire and moisture better than timber, making them more suitable for modern buildings.
5. Compatibility: The lintel material and finish should match the surrounding construction for proper bonding and good appearance.
Different types of lintels are used based on material, use, and load conditions. Here are the main types of lintel beams commonly used in construction.

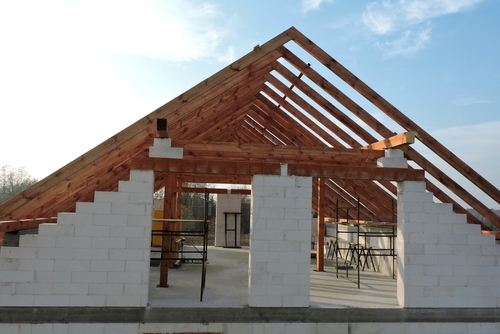

Wood lintels are one of the oldest types of lintel and are still used in areas where timber is easily available. They are usually placed over smaller spans, such as narrow doors and windows.
1. Advantages: Easy to cut and install, light in weight, and good for traditional designs.
2. Limitations: Prone to fire, decay, and termite attack; not suitable for heavy loads or long spans; requires regular maintenance and proper treatment.
For larger spans, multiple wood pieces can be joined with bolts to form a stronger lintel. However, due to durability issues, wooden lintels are now less common in modern buildings.
Tip: If using timber lintels, always choose mature, treated wood like teak or sal to improve life and performance.
Stone lintels have been used in heritage buildings and offer great strength and a classic look. They are common in regions where good building stone is locally available.
They are ideal for thick stone or brick masonry walls.
However, stone lintels are very heavy, may require special handling, and have limits on span length. They can also be more expensive and time-consuming to install compared to other types of lintel.

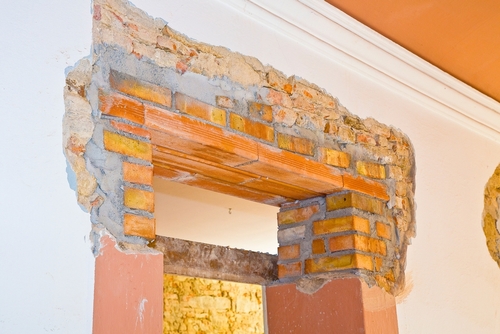

Blintels are made using good-quality bricks laid over the opening with mortar. They are best for small spans and light loads.
a. They blend well with brick masonry walls and give a uniform look.
b. They are economical when bricks are easily available.
Tip: Care must be taken to use strong bricks and proper mortar. Brick lintels are not suitable for very wide openings or heavy loads.

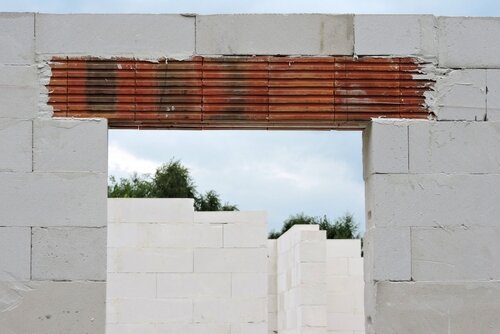

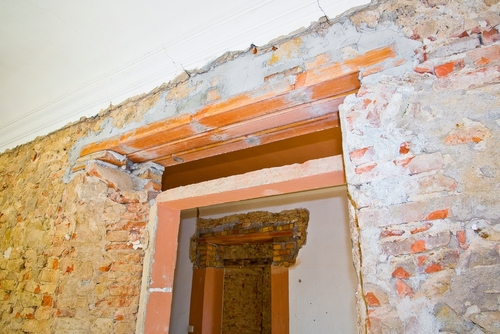

Reinforced brick lintels improve on plain brick lintels by adding steel within the brickwork.
a. Steel bars or rods are placed in the mortar joints and embedded properly.
b. The reinforcement provides additional tensile strength, allowing for larger spans and higher loads.
c. They help reduce the risk of cracking.
These lintels are useful when you want to keep the look of brickwork but need better performance than ordinary brick lintels can provide

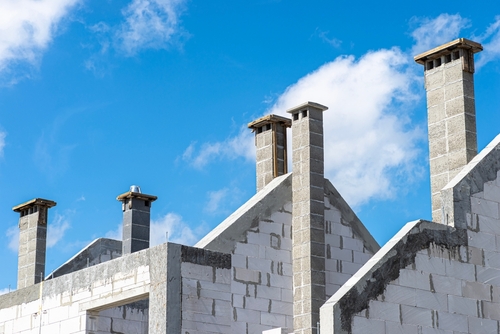

Concrete lintels are widely used in modern construction because they are strong, durable, and versatile. Concrete lintels can be plain or reinforced.
Plain concrete lintels are made using only concrete without steel reinforcement. They work mainly in compression and are suitable for:
1. Short spans
2. Light loads
3. Simple openings
Plain concrete lintels are limited in use and are now less common than reinforced lintels.
Reinforced concrete lintels, often called RCC lintels, use steel bars inside the concrete to take tensile stresses.
1. They can span larger openings and carry higher loads
2. They are suitable for almost all types of buildings, including homes, commercial spaces, and industrial structures.
3. They can also support sunshades and small projections.
Reinforced concrete lintels are usually of two types:
Precast lintels are cast and cured in a factory or yard and then transported to the site.
They offer consistent quality and faster installation on-site.
They are ideal for standard openings, repeated sizes, and mass housing projects.
Cast-in-situ lintels are cast directly at the site over the formwork.
1. They can be customised for any span, shape, or reinforcement detail.
2. They are useful when site conditions or design need flexibility.
Tip: For most home projects, reinforced concrete lintels are a safe and reliable choice when designed and cured properly. |

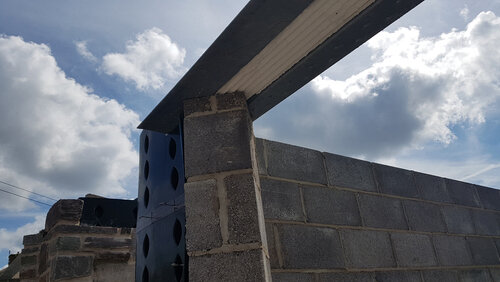

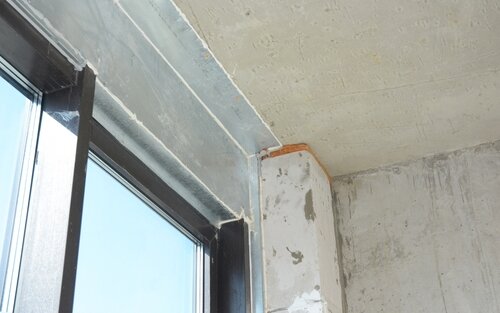

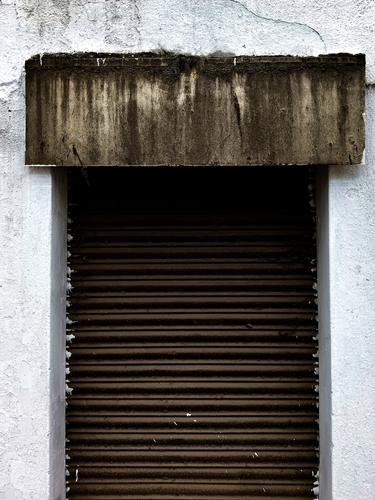

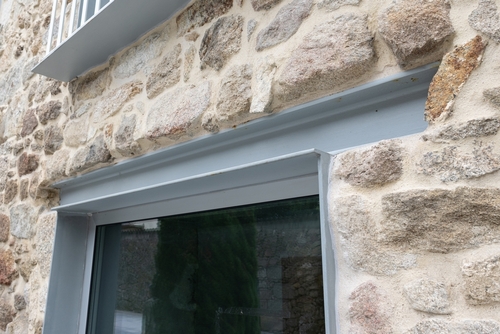

Steel lintels are used where high strength, long spans, or limited depth are required. They are commonly made from rolled steel sections such as angles, channels, or I-sections.
Steel lintels are especially useful in cavity walls and modern framed structures. Common types include:
Standard cavity steel lintels are designed for cavity wall construction.
a. They support both inner and outer walls.
b. They often include features to help manage moisture and maintain temperature within the cavity.
These are used when the outer leaf of a wall is shorter than the inner leaf.
a. They provide support mainly to the outer leaf.
b. They are useful in designs where the outer wall is not full height.
These lintels are used when the inner leaf of a cavity wall is wider.
a. They provide extra support for a thick inner wall or where services and insulation need more space.
These are used when the outer leaf is wider than the inner leaf.
a. They support the heavier external wall, often seen in feature walls or thicker external cladding.
Steel lintels must be properly protected from corrosion, especially in exposed or damp conditions.

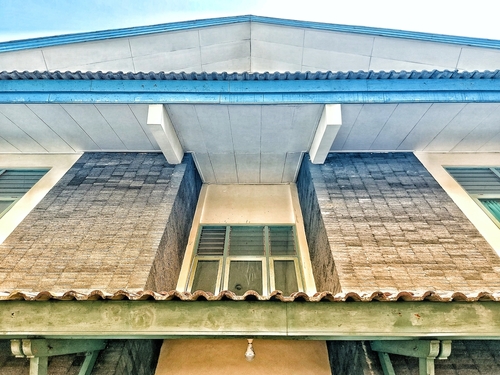

Specialist lintels are custom lintels designed for unique structural or performance needs.
a. They may offer added thermal insulation, fire resistance, or sound insulation.
b. They are used in complex architectural designs, large openings, or where building regulations demand specific performance.
These lintels can be made from steel, concrete, or a mix of materials and are usually designed by structural engineers for particular projects.
Cavity lintels are designed specifically for cavity wall constructions.
1. They span the opening while supporting both the inner and outer wall leaves.
2. They include a cavity tray or similar feature to stop water from entering the inner wall.
3. They help maintain thermal performance and moisture control in modern walls.
When choosing cavity lintels, factors like span, load, wall thickness, and insulation must be carefully considered.
Tip: Always match the lintel type to your wall construction (solid wall, cavity wall, or framed structure) for best performance. |
Choosing the right lintel material ensures strength, durability, and cost-effectiveness for your build.
1. Type of building (residential, commercial, industrial)
2. Span length and expected load
3. Environmental conditions (coastal, humid, dry, seismic)
4. Budget and availability of materials
1. Timber: For small spans and traditional buildings.
2. Stone: For heavy masonry and heritage-style structures.
3. Brick: For small spans in brick buildings.
4. Reinforced concrete: The most popular choice today for its strength and versatility.
5. Steel: For long spans, heavy loads, and cavity walls.
Lintels serve two main functions in construction.
The primary function of a lintel is to carry and spread the load from the masonry or structure above an opening.
1. It transfers this load to the side supports (walls or columns) without overstressing the opening.
2. It prevents cracking or crushing of the area above doors and windows.
Lintels help maintain the overall stability of the wall and building.
1. They act as horizontal ties over openings.
2. They improve the rigidity of walls and help resist bending.
Without a proper lintel, openings would be weak points that could lead to structural damage over time.
Lintels keep your home safe and crack-free by supporting walls over openings. Choose reinforced concrete or steel lintels matched to your span, load, and wall type after engineer approval. With the right type and material, your construction gains lasting strength and stability.
A lintel is used to support the wall or structure above openings like doors, windows, and ventilators. It stops the load from directly pressing on the frame and prevents cracks and sinking around the opening.
In simple terms, a lintel is often called a lintel beam or a horizontal support beam over an opening. In some contexts, it may be called a “header”, though the term can change by region and construction practice.
Lintel thickness depends on the span, load, and material used. For reinforced concrete lintels in homes, the depth is usually similar to or slightly more than the wall thickness, but the exact size must be designed by an engineer to meet safety standards.
The lintel size is calculated based on:
1. Width of the opening
2. Type of wall and loads above
3. Material strength and reinforcement details
Structural engineers use design codes and formulas to fix the depth, length, and reinforcement needed so that the lintel is safe.
For reinforced concrete lintels, the concrete mix ratio depends on standard structural grades, such as 1:1.5:3 or 1:2:4 (cement:sand: aggregate) depending on design requirements. The exact mix ratio would be based on your engineer’s or local code’s recommendations for strength and durability.
