Most plumbing problems start long before the first tap is installed.
A leaking bathroom wall, weak water pressure, or repeated drainage blockage usually happens because the plumbing lines in house construction were not planned properly from the beginning.
A proper house plumbing plan helps water flow smoothly, prevents leakage problems, and reduces future repair work.
Vijay, a homeowner from Nagpur, realised this after seepage started appearing near his bathroom wall just a year after construction. During repairs, he discovered that one poorly planned drainage line had caused the entire issue.
Read this guide to understand practical plumbing planning ideas that help homes avoid costly problems later.
Most plumbing issues inside homes are caused by poor planning, and not by poor materials.
Plumbing planning means designing the complete water flow system of the house before construction begins. It includes deciding:
1. Where water will enter the house
2. How water will reach kitchens and bathrooms
3. How wastewater will drain out
4. Where drainage and vent pipes will run
A proper house plumbing plan helps prevent leakage, drainage blockage, low water pressure, and unnecessary wall damage later.
Worth Knowing? Many seepage problems appear 1-2 years after construction, when hidden plumbing mistakes slowly start damaging walls internally. |
Poor plumbing planning can quietly increase repair costs for years.
A proper house plumbing plan helps:
1. Prevent leakage and damp walls
2. Improve water pressure
3. Reduce pipe blockage
4. Improve drainage flow
5. Make future maintenance easier
6. Avoid unnecessary wall breaking later
Good plumbing planning also helps reduce water wastage inside the house.
Builder Insight: Fixing plumbing after flooring and wall work is completed usually costs much more than proper planning during construction itself. |
Different plumbing lines perform different jobs inside a home. Understanding them early helps homeowners make smarter construction decisions.

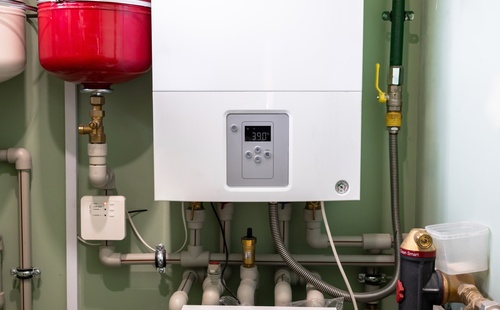

These pipes bring clean water into the house and supply it to taps, bathrooms,kitchens, and storage tanks. Good water supply planning helps maintain steady water pressure throughout the house.
Drainage pipes carry wastewater out of bathrooms, kitchens, and utility areas. Without proper slope and routing, drainage lines can later cause blockages, foul smell, or water leakage issues.
Vijay later discovered that one incorrectly sloped drainage pipe had caused continuous seepage near his bathroom wall.

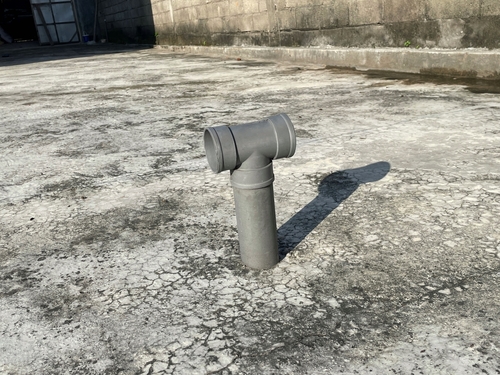

Vent pipes help release sewer gases and maintain smooth airflow inside drainage systems.
Without proper vent pipes:
1. Drains may smell
2. Water flow may slow down
3. Gurgling sounds may develop inside pipes
Though often ignored, vent pipes are important for smooth plumbing performance.

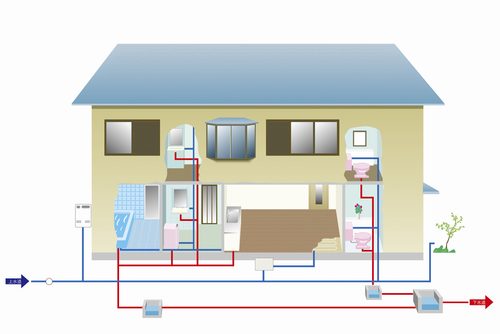

A good plumbing layout for house construction focuses on water flow, drainage safety, and future maintenance access.

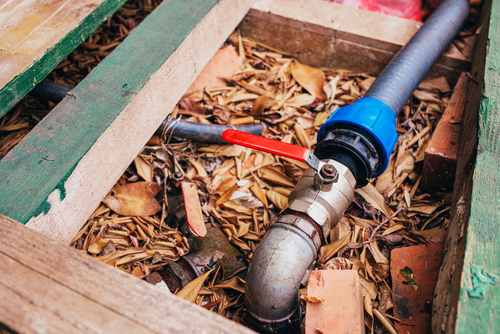

Decide where the house water supply will come from: Municipal connection, borewell, underground tank, overhead storage tank,etc,
The water source affects overall plumbing layout and pipe pressure.
Mark the positions of:
1. Wash basins
2. Toilets
3. Kitchen sinks
4. Washing machines
5. Showers
6. Water heaters
This helps reduce unnecessary pipe length inside the house.
Plan how pipes will move through walls, floors, and ceilings. Good plumbing lines in house construction should avoid unnecessary bends and remain accessible for future repairs.
Drainage planning is one of the most important parts of plumbing planning.
Ensure:
1. Proper pipe slope
2. Smooth wastewater flow
3. Correct drainage outlet connection
4. No water stagnation inside pipes
Vent pipes help maintain air pressure balance inside drainage systems and improve wastewater flow. They also help reduce bad smell issues inside bathrooms and kitchens.
Different areas of the house may require different pipe sizes and materials depending on water flow and usage.
Site Reality: Incorrect pipe sizing is one of the most common reasons behind low water pressure in Indian homes. |
Good plumbing planning depends on more than simply installing pipes.
Here are some important things homeowners should consider before finalising the plumbing layout for house construction.
Poor pressure planning can lead to weak water flow on upper floors or distant bathrooms. Tank height, pipe size, and routing all affect water pressure.

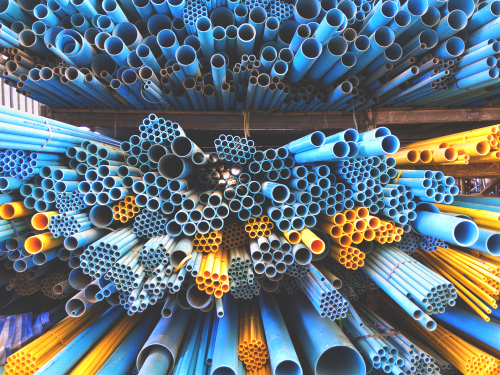

Different pipe materials offer different durability and performance. Commonly used options include:
1. PVC pipes
2. CPVC pipes
3. UPVC pipes
The right material depends on usage area, water pressure, and budget.
Drainage pipes require proper downward slope so wastewater flows naturally without blockage. Even small slope mistakes can create long-term drainage problems.
Pipes should remain accessible wherever possible. Hidden joints and inaccessible pipe routing can make future repairs expensive and difficult.
Plumbing costs depend on:
1. Pipe quality
2. House size
3. Bathroom count
4. Labour charges
5. Water storage systems
Good plumbing planning helps balance durability and budget together.
Different parts of a house require different plumbing layouts based on water usage and drainage needs.
Kitchen plumbing focuses on:
1. Sink water supply
2. Wastewater drainage
3. Water purifier connection
4. Washing machine points
Proper kitchen drainage planning helps avoid blockage caused by food waste and oil buildup.

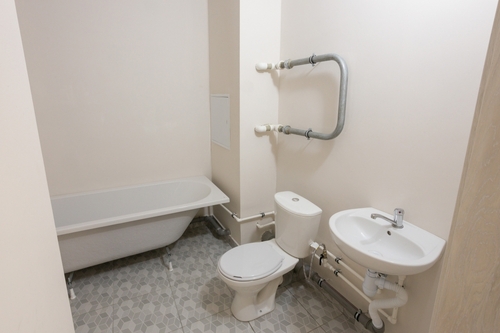

Bathrooms require detailed plumbing planning because multiple fixtures work together in one area.
Bathroom plumbing usually includes:
1. Shower pipes
2. Basin lines
3. Toilet drainage
4. Vent pipes
5. Hot and cold water lines
Poor bathroom plumbing planning often leads to seepage and drainage smell problems later.
Utility areas usually require:
1. Washing machine drainage
2. Cleaning water supply
3. Floor drain outlets
Proper slope and drainage planning help prevent water collection in these spaces.
Most plumbing problems become expensive because they are discovered after construction is completed.
Good plumbing planning helps homes avoid leakage, blockage, weak water pressure, and unnecessary repair work later. A well-designed plumbing layout for house construction improves water flow, protects walls from seepage, and keeps maintenance easier for years.
A strong home is not only built with good materials. It is built with systems that continue working properly long after construction ends.
Plumbing planning should be completed before slab casting and wall construction begin to avoid future modification work.
Drainage pipes require a slight downward slope so wastewater flows naturally through gravity without stagnation.
CPVC and UPVC pipes are commonly used because they offer good durability, water resistance, and long-term performance.
Plumbing cost depends on house size, number of bathrooms, pipe materials, labour charges, and water storage systems used during construction.
