Types of Shafts
Below are some of the common types of shafts used in construction:

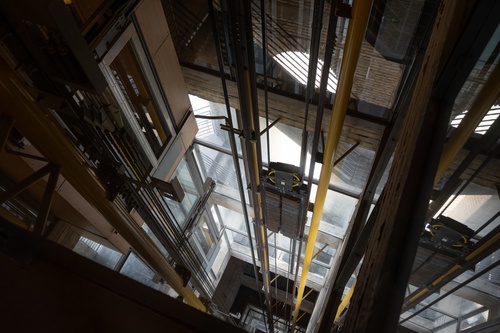

1. Elevator Shaft
2. Ventilation Shaft
3. Plumbing Shaft
4. Electrical Shaft
5. Firefighting Shaft
Uses of the Shaft
Some common uses of the shaft include:
1. Carrying elevator systems between floors
2. Housing plumbing pipes for water supply and drainage
3. Ventilation for fresh air or smoke extraction
4. Protecting electrical wires and telecom cables
Key Considerations in Shaft Design and Construction
If you're a homebuilder or planning to construct a multi-story house, here’s what you should know before finalising the shaft in construction:
1. Smart Placement
Positioning the shaft in a central, accessible area helps reduce construction complexity and improves service efficiency. It also saves space in rooms and corridors.
2. Multi-Utility Planning
Plan the uses of the shaft early. If you're including a lift, future plumbing extensions, or HVAC systems, it's best to design a shared shaft that can handle all of them without additional structural changes later.
3. Fire and Safety Compliance
Ensure the shaft is built with fire-rated materials and sealed properly. This protects your home by stopping fire or smoke from spreading between floors.
4. Noise Reduction
If the shaft carries drainage pipes or lift machinery, consider adding insulation or soundproofing to reduce noise in bedrooms or living areas.
5. Sill Level Accuracy
Aligning shaft openings with the right sill levels ensures doors, windows, or equipment fit perfectly, saving you from costly adjustments later.
6. Future Maintenance Access
Think long-term, technicians should be able to service the shaft without damaging walls or finishes. Proper shaft access panels make life easier down the road.
