Concrete compaction is the process of reducing the volume of entrapped air in freshly placed concrete by consolidating it. It improves the overall quality of the concrete by eliminating voids, enhancing density, and promoting better bonding between the aggregates and cement paste. Compaction significantly contributes to the strength, durability, and longevity of concrete structures. By achieving proper compaction, you can also avoid the different types of cracks in concrete and enhance its overall lifespan.
There are several concrete compaction methods, each with its unique advantages and applications. Let's delve into each of them in the following sections.

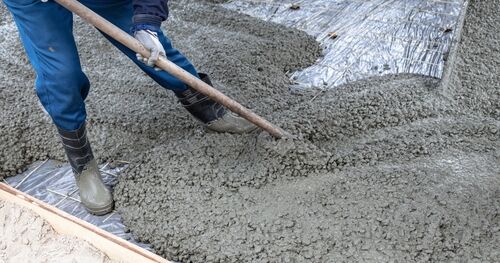

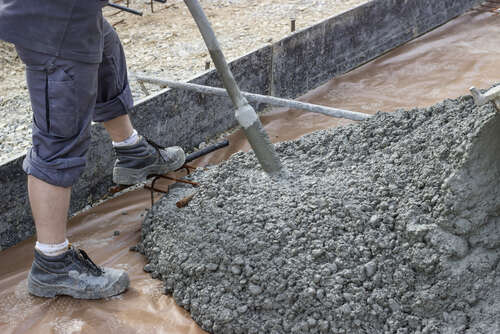

Manual compaction, also known as hand compaction of concrete, involves the physical effort of labourers using handheld tools to compact the concrete. Trowels, tampers, and rods are commonly used for this method. It is suitable for small-scale projects or areas with limited access to larger compaction equipment.
During manual compaction, labourers carefully work the concrete mixture by repeatedly pressing, tamping, and striking it to remove air voids and achieve better compaction. Skilled workers can effectively compact concrete in confined spaces or around complex reinforcement. However, manual compaction can be time-consuming and requires experienced labourers to ensure proper compaction.
Pressure and jolting techniques are commonly used in laboratory settings or precast concrete manufacturing. In this method, pressure or impact loads are applied to the concrete specimen to eliminate air voids and ensure uniform density. In laboratory settings, specialised equipment such as a compaction apparatus or a compaction factor apparatus is used. These apparatuses apply pressure to the concrete sample, compacting it and allowing for accurate testing and analysis of its properties.
In precast concrete manufacturing, jolting tables or vibrating tables are used. The concrete is placed on these tables, and rapid vertical vibrations are applied, causing the mixture to settle and eliminate entrapped air. This concrete compaction method is often employed to produce high-performance concrete that requires meticulous compaction for optimal strength and durability.
Compaction of concrete done by spinning is a specialised technique used in certain applications. Its effectiveness in producing high-performance concrete is commonly employed in the manufacturing of precast concrete products such as pipes, poles, and other cylindrical elements.
In this method, a concrete-filled mould is rotated or spun at a high speed. The centrifugal force generated during spinning effectively removes entrapped air voids and consolidates the concrete. This concrete compaction method ensures uniform density and helps in achieving high-quality precast elements.
Concrete compaction machines, specifically mechanical vibrators, are the most widely used method for achieving efficient compaction in concrete. It involves the use of mechanical vibrators to impart vibrations to the concrete, resulting in better compaction. However, it's worth noting that certain types of liquid concrete mixes, such as self compacting concrete or self consolidating concrete (SCC), do not necessarily require the use of a vibrator.
There are various types of mechanical vibrators are available, each suitable for different applications, here are some of them:
Also known as immersion or internal vibrators, needle vibrators are commonly used for compacting concrete in walls, columns, and other narrow sections. These vibrators consist of a vibrating head attached to a flexible shaft. The vibrating head is inserted into the concrete at regular intervals, allowing the vibrations to liquefy the mixture, remove air voids, and achieve uniform concrete compaction.
Surface vibrators, also called screed or pan vibrators, are a concrete compaction method used to compact concrete slabs, pavements, and flat surfaces. These vibrators are moved along the surface of the concrete, levelling it and removing excess air voids simultaneously. Surface vibrators are particularly effective in achieving a smooth finish on large horizontal surfaces.
Formwork vibrators are specifically designed for consolidating concrete in formwork. They are used to ensure proper concrete compaction around embedded reinforcement and achieve a smooth surface finish. Formwork vibrators are essential for high-quality concrete elements, such as walls, beams, and columns.
Table vibrators are used to compact thin concrete elements, such as precast panels or tiles. The concrete is placed on a vibrating table, which imparts vibratory motion to the entire surface. The motion of this concrete compaction method effectively eliminates voids and enhances density, ensuring excellent compaction of concrete by vibration in thin sections.
In summary, concrete compaction plays a vital role in achieving strong and durable concrete structures. By eliminating entrapped air voids and consolidating the mixture, compaction enhances the strength, density, and impermeability of concrete. Whether you choose manual compaction, pressure and jolting, spinning, or mechanical compaction using vibration, it is essential to follow proper techniques and employ suitable equipment.
To learn more about how to do compaction to ensure the longevity and performance of your concrete structures, here is an informative video on compaction on concrete.
