Design and Uses of Cantilever Retaining Walls

Retaining walls prevent soil erosion and provide structural stability. Since you only build your home once, choosing the right retaining wall design is essential. Cantilever retaining walls offer a durable and efficient solution, balancing soil pressure with reinforced concrete.. In this blog, we’ll explore the design, types, and uses of cantilever retaining walls.

Share:


Key Takeaways



  • Cantilever retaining walls are designed to withstand significant lateral pressure from retained soil, ensuring the stability of elevated or sloped landscapes.



  • They offer an economical alternative to gravity walls, requiring less concrete material, making them suitable for mid-sized projects.



  • Proper cantilever retaining wall reinforcement details are crucial for ensuring the wall's long-term durability and resistance to soil pressure and weathering.



  • Due to their strong, flexible design and efficient space usage, these walls are ideal for various projects, from highways and basements to landscaping.


A well-designed retaining wall ensures structural stability and prevents long-term soil movement, reducing the risk of erosion and land shifts. Cantilever retaining walls, with their reinforced concrete design, efficiently distribute pressure while using less material than gravity walls, making them a preferred choice for various applications from highways to basements.

Since you only build your home once, every decision impacts its long-term strength. A properly designed retaining wall, built with the right materials and techniques, ensures the safety and durability of your construction.

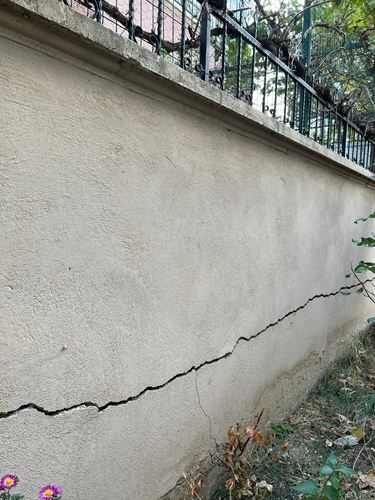

What is a Cantilever Retaining Wall?

A cantilever retaining wall is a reinforced concrete structure to hold back soil and prevent erosion or landslides. It consists of a vertical stem and a horizontal base slab, forming an L or T-shape. The base slab provides stability by using soil pressure to counterbalance the retained earth. These walls are commonly used in highways, basements, and landscaping projects due to their cost-effectiveness and structural efficiency.





Function of Cantilever Retaining Wall

A cantilever retaining wall plays a crucial role in construction by providing structural support to soil, preventing landslides, and ensuring the stability of elevated landscapes. Unlike gravity walls, it uses a reinforced concrete base and a vertical stem to balance soil pressure effectively.



Key Function of Retaining Walls:



  • Supports Soil Stability

Holds back soil in sloped areas, preventing landslides and maintaining land contours.



  • Prevents Erosion

Reduces soil displacement due to wind or water, making it ideal for roads, gardens, and urban developments.



  • Withstands Lateral Pressure

Distributes the force exerted by retained soil through its reinforced design, preventing structural failure.



  • Facilitates Drainage

Incorporates weep holes or drainage pipes to release trapped water, minimising hydrostatic pressure.



  • Provides Structural Support

Commonly used in basements, highways, and bridge abutments to reinforce earth retention.



  • Cost-Effective Solution

Requires less concrete than gravity walls, offering a durable and economical retaining system.



Cantilever retaining walls are widely used for their strength, efficiency, and ability to handle significant loads with proper reinforcement and design.





Types of Cantilever Retaining Walls

Cantilever retaining walls are widely used in construction due to their efficiency in holding back soil while using minimal materials. These walls rely on a strong base and a vertical stem to counteract soil pressure.

Different types of cantilever retaining walls are suited for specific applications based on load requirements, construction methods, and site conditions.

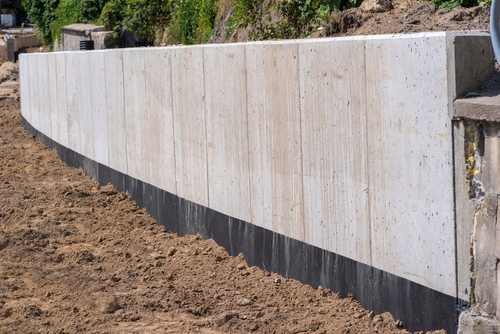

  •  Reinforced Concrete Cantilever Walls

    • The most common type is built using reinforced concrete with a horizontal base slab and a vertical stem.

    • The base consists of two parts: the heel, which extends beneath the retained soil, and the toe, which projects outward for stability.

    • Suitable for medium to large-scale retaining structures such as basements, highways, and bridge abutments.

    • Requires careful design and reinforcement to handle high soil pressure effectively.



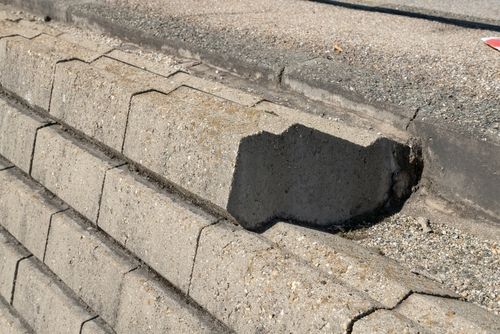

  • Precast Cantilever Walls

    • Prefabricated concrete wall sections that are manufactured off-site and transported for installation.

    • Ideal for projects where quick construction is required, such as temporary retaining walls or urban developments.

    • Offers high precision and consistency in quality due to controlled manufacturing conditions.

    • Reduces labour and on-site curing time, making it a cost-effective and efficient solution.



  • Hybrid Cantilever Systems

    • A combination of reinforced concrete and additional structural elements like steel supports or geogrid reinforcements.

    • Designed to handle extreme loads where traditional cantilever walls may not be sufficient.

    • Often used in geotechnical projects where soil conditions require additional stability measures.

    • Provides greater flexibility in design, allowing for customised solutions in challenging terrain.



Cantilever retaining walls are popular due to their durability and structural efficiency. The right type depends on soil conditions, project scale, and budget constraints.



Also Read: Understanding Retaining Walls: Types & Designs in Construction





Cantilever Retaining Wall Design

A cantilever retaining wall design is made to withstand lateral soil pressure while maintaining stability through its weight and structural configuration. The design includes several key components:



  • Stem: The vertical portion that retains the soil.

  • Base Slab: Divided into the heel (extends under the backfill) and the toe (projects outward for balance).

  • Counterforts: Reinforced concrete supports are added to strengthen tall walls.

  • Drainage System: Includes weep holes and perforated pipes to prevent water accumulation behind the wall, reducing hydrostatic pressure.



Cantilever retaining wall reinforcement details are essential in ensuring the wall can effectively manage the soil loads and prevent failure. The reinforcement layout must be carefully designed, considering soil pressure, wall height, and environmental conditions. This reinforcement usually involves a combination of steel bars and mesh placed strategically within the stem and base slab to provide maximum stability.



Here are a few Key Considerations in Design:

  • Structural Stability: The wall must resist overturning, sliding, and bearing failure under various loads.

  • Material Strength: Typically constructed using reinforced concrete to withstand high soil pressure.

  • Foundation Support: Requires a strong base with proper soil compaction to prevent settlement.

  • Seismic Considerations: In earthquake-prone areas, the wall must be designed to accommodate lateral ground movements.





Advantages of Cantilever Retaining Walls



  • Efficient Material Use

Requires less concrete than gravity walls due to its leveraged design.



  • Cost-Effective for Medium Heights

Suitable for retaining walls up to 7 meters without excessive material use.



  • Structural Strength

Reinforced concrete provides high durability and long-term stability.



Also Read: What is RCC footing?



  • Space-Saving

Since it uses a thinner stem and relies on the base slab for support, it occupies less horizontal space.



  • Customisable Design

Can be precast or cast-in-place, allowing flexibility for different site conditions.





Disadvantages of Cantilever Retaining Walls



  • High Initial Cost

Requires reinforcement, excavation, and formwork, increasing construction expenses.



  • Complex Construction

Needs precise engineering and skilled labour for proper execution.



  • Soil Dependence

Not ideal for weak or unstable soils without additional reinforcement.



  • Drainage Requirements

Poor drainage can cause hydrostatic pressure buildup, leading to failure.



  • Limited Height

Not suitable for retaining walls exceeding 7-8 meters without additional supports like counterforts.




Cantilever retaining walls are reinforced concrete structures designed to balance soil pressure, prevent erosion, and provide long-term stability. Their efficient design uses minimal material while offering strong structural support, making them ideal for various applications like highways, basements, and landscaping. Since you only build your home once, getting the retaining wall design right is essential for long-term durability.




Frequently Asked Questions



1. When to use a cantilever retaining wall?

A cantilever retaining wall is used when there is a significant height difference between two land levels, especially in sloped areas. It’s ideal for areas requiring strong support to hold back soil.



2. What is the maximum height for a cantilever retaining wall?

Cantilever retaining walls are typically effective up to 10-15 feet, but with proper design, they can go higher, depending on soil conditions and reinforcement.



3. What is the difference between gravity and cantilever retaining walls?

Gravity walls rely on their weight to resist pressure, while cantilever walls use a more complex design with a backward-leaning stem to leverage resistance, making them more efficient for taller structures.



4. What is the strongest type of retaining wall?

Counterfort retaining walls are often considered the strongest as they have additional supports (counterforts) that help distribute pressure, making them ideal for larger soil volumes.
