Types of Soil for Building Foundations

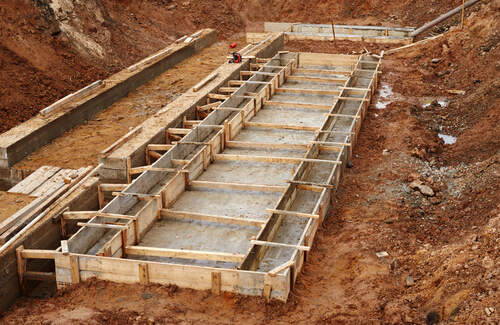

The foundation of any structure is only as strong as the ground it's built upon. Understanding the various types of soil and their properties is vital when laying the groundwork for a building. Let's explore the major soil types used in building foundations and their unique traits.

Share:


Key Takeaways



• The type of soil greatly affects the stability of construction projects.



• Sandy and loam soils are excellent for building foundations due to their water management and stability.



• Clay and peat soils are not ideal due to their expansiveness and high water retention, respectively.



• Site investigation and soil testing are crucial before beginning construction to choose the best soil.


When it comes to construction, considering the types of soil is one of the most important design decisions. All types of construction have a base of soil whether it is a house, apartment building, or a standalone condo. In this blog, you will get a better understanding of the different types of soil in construction to be able to take the call about which one to use.


Which Is The Best Soil For the Foundation Of a Home?



All construction should be built on strong and stable soil. The strength of soil depends on its physical characteristics. If the soil under the building is not strong enough it could lead to the foundation cracking, breaking, and resulting in the building to collapse.

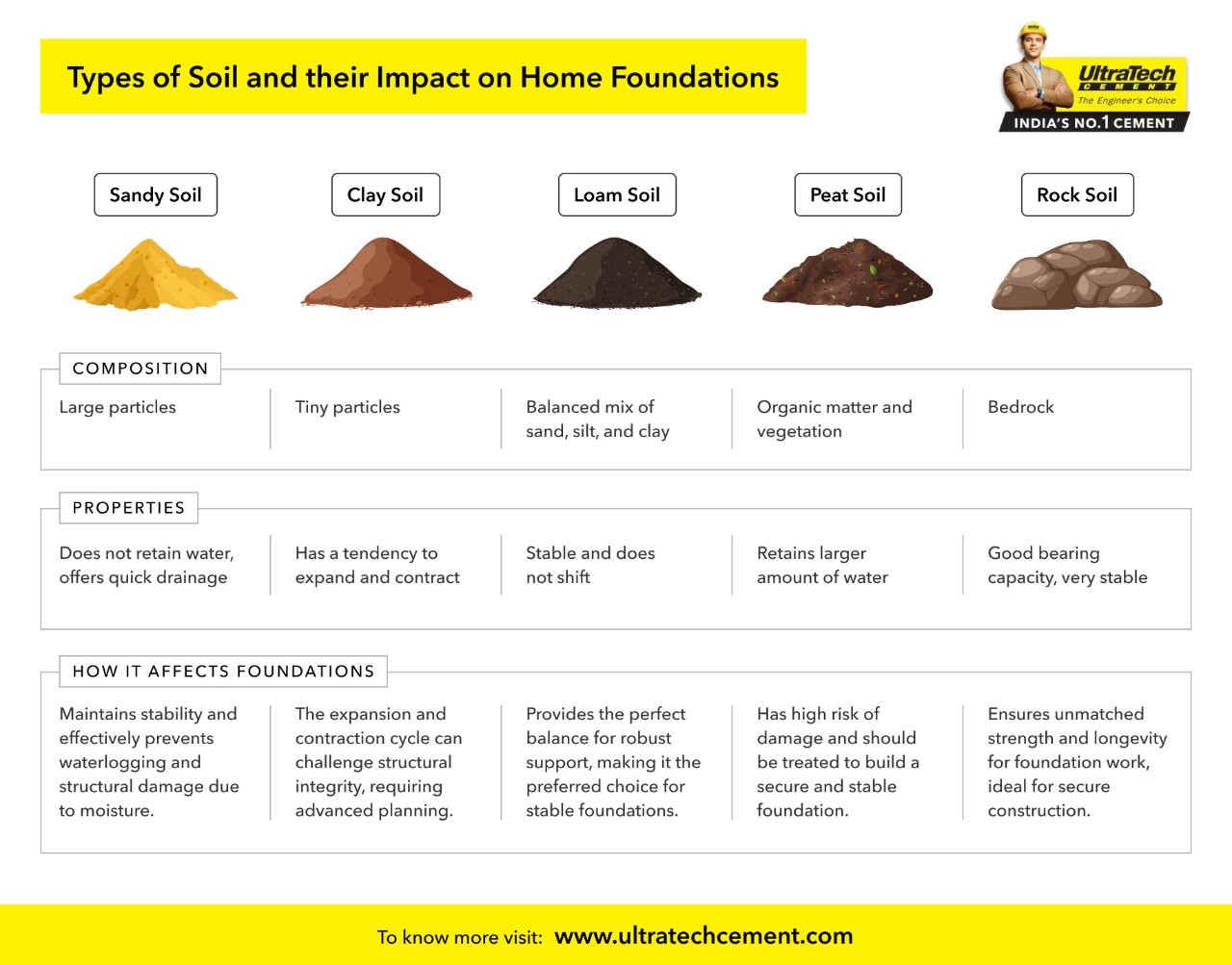

Below are the different types of soil for building foundation and their properties which will help you make the right decision:


1) Foundation on Sandy Soil



Sand/gravel have the largest particles among the various types of soil in construction. Owing to the bigger particles, this type of soil does not retain water and lets water drain out quickly which is great for buildings. Compacted sand/gravel offers even more stability and are great to build a foundation on.


2) Foundation on Clay Soil



Clay is not ideal to use as a material for the foundation of buildings. Its tendency to contract and expand during the different seasons leads to cracks or fissures in the foundation of the building. Clay soil foundations are usually deeper to ensure there is enough stability. The tiny particles in clay hold water for a long time. The extreme changes can put a significant amount of pressure on the foundation.


3) Loam Soil Foundation



Loam is one of the best types of soil in construction. It has the perfect combination of sand, silt, and clay. This enables the foundation to be strong. Loam does not shrink, expand or shift when it comes in contact with water. The only disadvantage of loam soil is that there could be a possibility of undecomposed materials in the composition of this type of soil which should be filtered out before construction.


4) Peat Foundation



Peat soil is that which is found in areas such as bogs and wetlands. It primarily consists of organic matter and vegetation. It retains a large amount of water which does not make it ideal for construction. A peat foundation is at high risk of cracks, can shift around, and has a low bearing capacity. If you construct a building on this kind of foundation, the risk of damage is very high.


5) Foundation on Rock Soil

Limestone, hard chalk, sandstone, etc. all have good bearing capacities making them an ideal material for foundations. Bedrock is more stable and resistant when it comes to damage caused by water. The most important thing to remember when building on bedrock is to ensure that it is well levelled.


Things To Consider For Soils And Foundations

With so many options, there are certain things to keep in mind when considering the types of soil in construction. The foundation of every building should be strong, efficient, and constructed well. The kind of soil used can have different impacts on the foundation depending on its properties. Generally, soils that contain more rocks, sand, and gravel are stronger and can withstand the changing seasons. Pick a soil that does not expand or shrink much when it comes in contact with water. Soils that contain organic matter have a higher tendency of holding water which can result in shifting and cracking of the foundation. Good soils for construction should have balanced chemistry to prevent material corrosion.




In conclusion, selecting the right types of soil for building foundations is a crucial step in ensuring the stability and longevity of any structure. Each major soil types come with their own unique characteristics, and understanding these properties is essential for engineers and builders. Whether it's expansive clay, sandy soil, or loamy soil, proper site investigation and soil testing are indispensable to make informed decisions.
