Is Spread Footing the Right Foundation for Your Home?

The right foundation choice prevents structural issues like cracks, settlement, and instability. Since you only get one chance at homebuilding, understanding different foundation types helps you make the best decision. This blog explores how spread footings work, their types, benefits, and potential challenges.

Share:


Key Takeaways



  • Spread footing is a type of shallow foundation that helps distribute a building’s load over a larger surface area, preventing excessive soil pressure and settlement.



  • It is ideal for structures built on soil with good bearing capacity and is commonly used in residential, commercial, and industrial buildings.



  • The foundation works by dispersing structural weight across the soil, minimising the risk of tilting or sinking and ensuring long-term stability.



  • Engineers design spread footings based on factors like soil type, load capacity, and climate conditions to optimise structural strength.


A weak foundation can lead to structural issues like cracks, uneven settling, or long-term instability. A well-planned spread footing foundation design ensures even weight distribution, preventing damage and ensuring durability. Spread footing, a commonly used shallow foundation method, helps evenly distribute the structure’s weight, preventing damage and ensuring durability.

Since you only get one chance at homebuilding, getting the foundation right from the start is essential. A well-planned spread footing ensures stability, minimises maintenance concerns, and enhances the overall durability of your home. Choosing the right technique and high-quality cement ensures your home remains strong for generations, providing safety and stability for years to come.

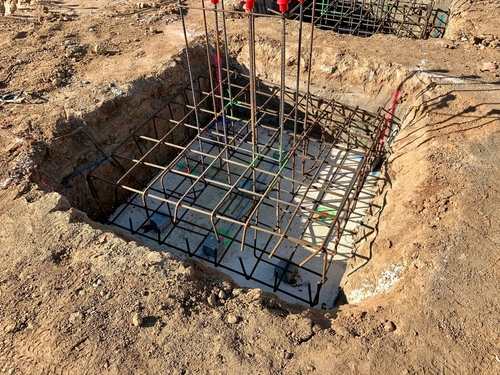

What is Spread Footing?

Spread footing is a type of shallow foundation used to support columns, walls, and other structural components by distributing the load over a larger surface area. It is constructed by extending a reinforced concrete base beneath the structure to prevent excessive soil pressure and uneven settlement.

A well-planned spread footing foundation design is crucial for buildings where the soil has good bearing capacity. It helps transfer the structural load to the ground efficiently while minimising the risk of cracks or structural shifts. This foundation type is widely used for residential, commercial, and industrial buildings with moderate load requirements.





How Does Spread Footing Work?

When a structure exerts weight on the foundation, spread footing disperses the load across a broader area, reducing stress on the soil. This prevents sinking or tilting, ensuring stability. Engineers design spread footings based on soil type, load capacity, and climate conditions to optimise performance.



Also Read: What Are Footing in Construction? Types and Uses

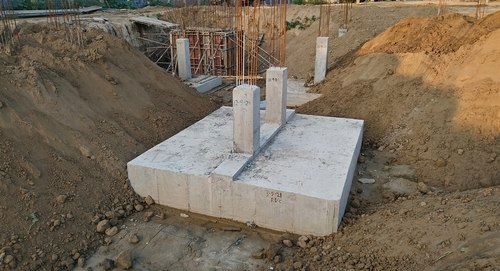

Types of Spread Footing



Different types of spread footing are used based on structural needs and soil conditions. One of the most common types is:



1. Isolated Footing:

Isolated footing supports single columns individually. It is ideal for buildings with evenly spaced columns that don’t require interconnected support. This type of spread footing design is simple and cost-effective for smaller structures but is unsuitable for weak soil conditions.



2. Combined Footing:

Combined footing supports two or more columns when they are closely placed. It is used when individual footings would overlap due to space constraints. Combined footing provides better stability and load distribution, though it requires a precise design to balance loads effectively.



3. Strip Footing

Strip footing is a continuous footing that supports walls or rows of columns. It is commonly used for buildings with load-bearing walls, as it distributes loads evenly along the length of the wall. However, it is not ideal for heavy structures that require deeper foundations.



4. Strap Footing

Strap footing connects two isolated footings using a reinforced concrete beam. It is useful when soil pressure varies between columns as it helps balance uneven load distribution. However, this type of spread footing designl requires a careful structural design to ensure effectiveness.





Advantages of Spread footing

Spread footing offers several benefits, making it a preferred choice for many construction projects:



1. Cost-Effective

Compared to deep foundations, spread footing requires less excavation and fewer materials, reducing overall construction costs.



2. Easy to Construct

The design and construction process is straightforward, making it a convenient choice for small to mid-rise buildings.



3. Efficient Load Distribution

By spreading the load over a larger area, this foundation minimises soil pressure and reduces the risk of structural failure.



4. Suitable for Various Structures

From residential homes to commercial spaces, spread footing is versatile and adaptable to different construction needs.



5. Requires Minimal Maintenance

Once constructed, spread footing foundations need little upkeep, ensuring long-term durability.





Disadvantages of Spread footing

Despite its benefits, spread footing has some limitations that need to be considered:



1. Not Suitable for Weak Soil

If the soil has low bearing capacity or is prone to shifting, spread footing may not provide adequate support.



2. Limited Load-Bearing Capacity

This foundation type works well for low to medium-rise buildings but is not ideal for high-rise structures or heavy industrial loads.



3. Vulnerability to Moisture Changes

Excess moisture or waterlogging can weaken the foundation, making proper drainage essential for longevity.



4. Space Constraints

In urban areas with limited space, spread footing may not be the best option due to its wider base requirements.




Spread footing is a cost-effective and reliable foundation method that ensures stability through efficient load distribution. However, its durability depends on soil conditions, design precision, and the quality of materials used, especially cement. Since you only get one chance at homebuilding, choosing the right foundation type from the start ensures lasting strength and safety for your home




Frequently Asked Questions



1. What is the difference between spread footing and raft footing?

Spread footing supports individual columns or walls, distributing the load over a broader base. Raft footing, on the other hand, spreads the load across the entire foundation area, making it suitable for weak soil conditions.



2. Which footing is most economical?

Spread footing is considered the most cost-effective for buildings with stable soil, as it requires minimal excavation and reinforcement. However, a raft foundation might be more economical in the long run for poor soil conditions.



3. What type of foundation is a spread footing?

Spread footing is a shallow foundation that distributes the load over a larger soil area to prevent excessive settlement and ensure stability.



4. What is the most common spread footing?

Isolated footing is the most widely used type since it efficiently supports single columns and is easy to construct for residential and commercial buildings.
