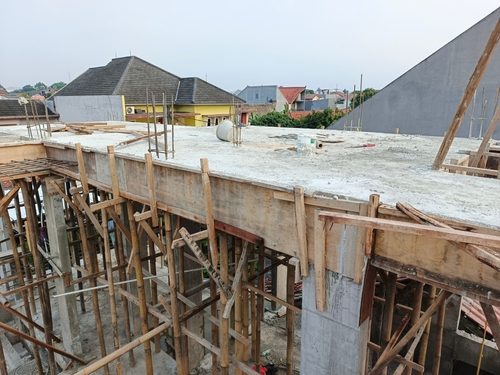

What Does a Capping Beam Look Like?
For a capping beam design example, picture a row of vertical piles joined by a continuous concrete beam at the top. This beam links them together and provides a level platform for building walls or columns.
How is Capping Beam Construction Done
Here’s a step-by-step look at how a capping beam is built:
Step 1: Place the Piles or Retaining Walls
First, foundation piles or retaining wall elements are installed deep into the ground as per the design.
Step 2: Level and Clean the Pile Tops
The tops of the piles are trimmed, cleaned, and levelled to prepare for connecting them.
Step 3: Set Up Steel Reinforcement
Steel bars (rebars) are placed over the piles to connect them and provide strength to the beam.
Step 4:Build the Formwork
A wooden or metal frame (formwork) is built around the piles to shape the capping beam.
Step 5: Pour and Set the Concrete
Concrete is poured into the formwork, covering the steel bars. After it sets and hardens, the beam becomes a solid base that holds all the piles together.
5 Reasons You Should Use a Capping Beam For Your Home Construction?
A capping beam plays an important role in keeping your home’s foundation strong and stable, especially in areas with weak soil or uneven land.
Reason 1: A capping beam ties all foundation piles together, creating a solid and stable base for your home.
Reason 2: It helps distribute the building's weight evenly across all piles, reducing the chances of cracks or uneven settling.
Reason 3: It provides a level surface on top of the foundation, making it easier to build walls or columns.
Reason 4: It adds extra support in areas with weak soil or flooding risks, helping to prevent future shifting or sinking
