What Is an Elevation Plan? A Comprehensive Guide to Understanding Their Importance

In the world of construction, turning a vision into reality involves planning, measurements, and execution done precisely. One of the fundamental aspects that form the backbone of any construction project is the "Elevation Plan." This plan is a critical document that serves as a blueprint for architects, builders and engineers about the design of a structure.

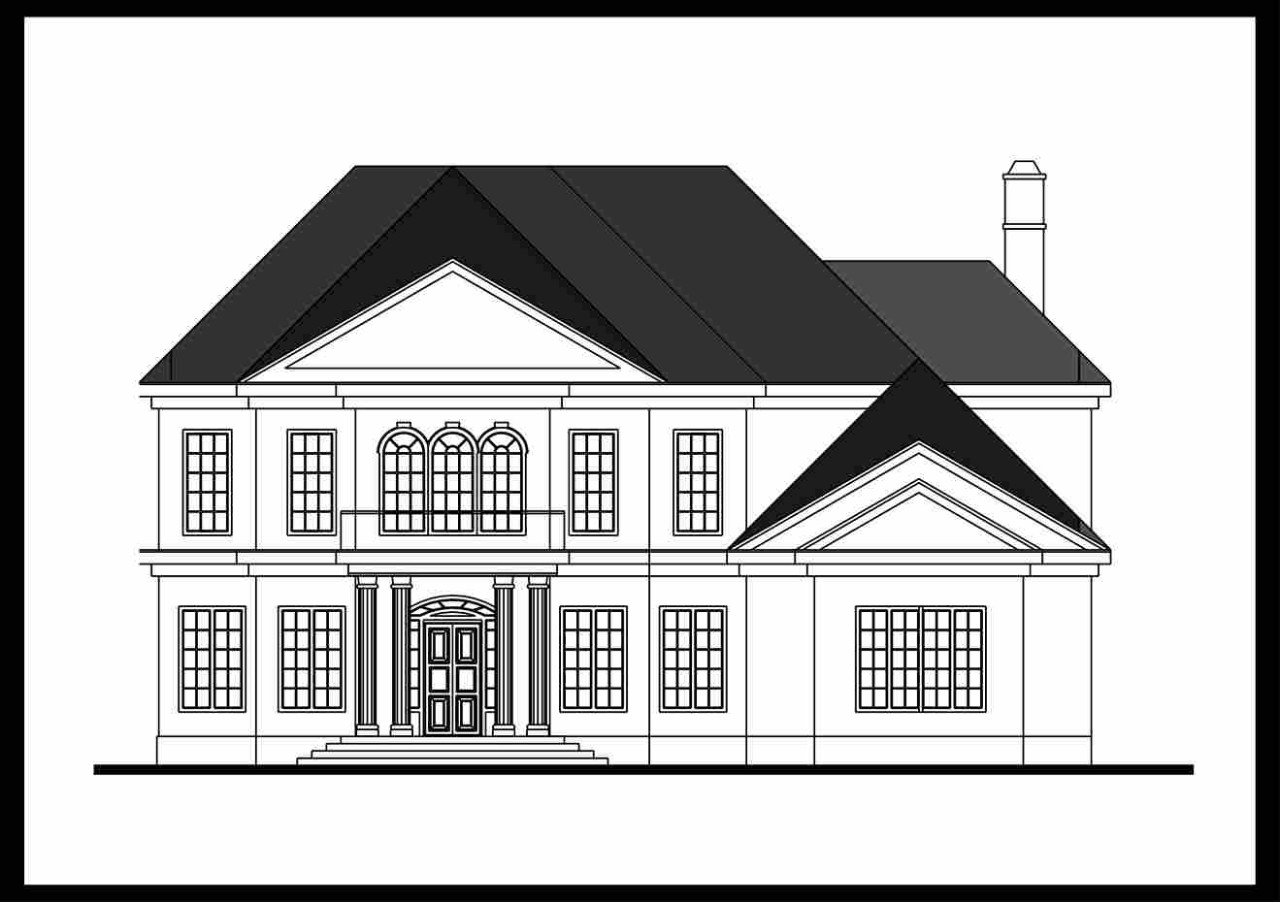

An elevation plan provides us with an idea of what the finished building will look like. It is a visual representation of the exterior sides of a building, illustrating the structural and architectural details. In some cases, these plans can also illustrate the interior of a building. Just as a floor plan or a reflected ceiling plan showcases the layout of a building, an elevation plan showcases the building's height and appearance.


They play a crucial role by helping architects, builders, and clients visualise and understand how the building will look once completed. By depicting the building's exterior features and dimensions, these plans assist in easy construction, maintenance, and modifications. They also save time, resources, and money by ensuring everyone involved in the project is satisfied with the design before construction begins.


In this blog, we will explore what an Elevation Plan is, its importance, and how it proves to be a valuable asset in the successful completion of construction projects.

What is Incorporated in an Elevation Drawing?

To create an elevation drawing plan, various elements such as the main door, windows, roof area, dimensions, legends, and scale are included. These plans are typically created for four directional views: North, South, East, and West. Here are the main elements typically included in an elevation plan:


1. Architectural details

This plan showcases the architectural features of a building, such as the facade design, exterior finishes, decorative elements and other ornamental features that contribute to the building's overall aesthetic appeal.


2. Dimensions

Accurate measurements and dimensions are included in the plan, allowing builders to determine the exact size and scale of each element on the facade. This information plays a crucial role during construction.


3. Scale

They are drawn to scale, allowing architects, builders, and clients to understand the relative sizes and distances of different elements in the building.


4. Windows and doors

The placement, size, and style of windows and doors are depicted in the elevation plan, giving a clear idea of how these openings contribute to the overall design.


5. Roof design

The plan also features the roof design, showcasing its slope, style, and any roof features like chimneys or skylights. This helps in visualising the overall appearance and ensures the correct execution of roofing elements.


6. Vertical heights

An elevation drawing also illustrates the vertical dimensions and heights of the building, including the number of floors, ceiling height, and roofline.


7. Material information

The plan often specifies the materials that will be used for the exterior, such as brick, stone, stucco, or siding. This helps builders and contractors make informed decisions during the construction phase.


8. Landscaping and external features

In some cases, these plans also incorporate landscaping elements such as gardens, pathways, driveways, and other external features that contribute to the overall aesthetics of the building.

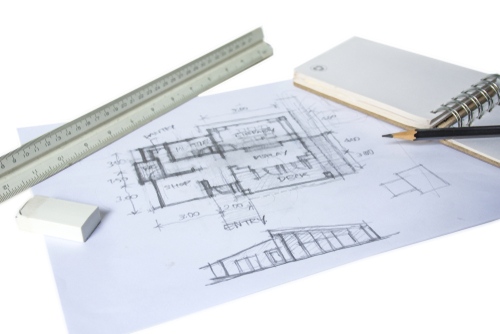

The Importance of Elevation Plans While Building a Home

When it comes to building elevation, these plans hold significant importance. Let's explore the various reasons why an elevation plan is essential in the construction process:


1. Easy construction

These plans can act as a blueprint, showcasing the building's exterior details, dimensions, and finishes. This helps construction teams to accurately implement the design, resulting in a smoother and more efficient construction process.


2. Easy maintenance

A plan like this makes it easier for homeowners to identify and address any issues or repairs needed on the exterior of their homes. This ensures that the maintenance process is more organised and cost-effective.


3. Saves resources

By having a clear vision of the building's exterior design through the elevation plan, builders can avoid costly mistakes during construction. This saves both time and resources by preventing rework or changes to the design.


4. Easy modifications

These plans are particularly valuable when modifications or additions need to be made to the building. Whether it's expanding a room, adding a window, or altering the roofline, this plan serves as a reference point for making precise and consistent changes.


5. Easy accessibility

Easy accessibility is an important consideration in the creation of an elevation drawing. By including existing walls or trees that may pose challenges to the construction of overhangs or hinder movement around the building, the elevation plan allows the owner or builder to anticipate and address any potential issues

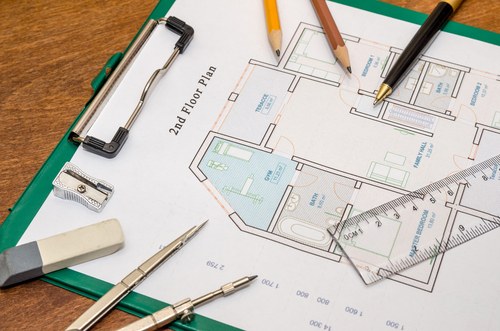

What is an Elevation Drawing & Ways to Draw an Elevation Plan Drawing

1. Drawing main floor wall baseline

In order to create an elevation plan using traditional methods, you need to start by drawing the main floor wall baseline. This can be done by referring to your floor plan drawings and measuring the horizontal distance of any walls. Make sure to include the thickness of any siding material for the exterior sidewalls.


2. Determining the wall heights

After measuring the main floor walls, you will draw vertical lines for the exterior walls. It is important to determine how high the walls will be above the unfinished floor height. Consider the height of the ceilings in the rooms within the section of the building and add to that the height of any floor or ceiling joists above it.


3. Drawing windows and door outlines

After determining the wall heights, proceed to draw the outlines of windows and doors. Measure from the horizontal lines of your floors to accurately position the exterior doors and windows. To ensure precision, consult a separate window and door schedule to obtain the dimensions for each individual window and door in your elevation drawing.


4. Drawing the roofs

Moving on to drawing the roofs, you can now create the desired roofline for your plan. Choose from different roof types such as gable, shed, hip, or gambrel to achieve the desired architectural style. Take into account whether the roof will overhang or drop below the exterior wall on the exterior elevation plan being drafted, ensuring a cohesive and visually pleasing design.


5. Adding decks and railings

Once the windows, doors, roof, and basic drawing are completed, you can add decks or porches, railings, and stairways. Make sure to accurately measure the height difference between your main floor and the final level of landscaping around the house.


6. Discuss

Discuss the initial drawing with relevant stakeholders to gather feedback and insights. This collaborative approach allows for a comprehensive review of the design and ensures that any concerns or modifications are addressed. The drawing can then be enhanced by modifying the plan.


7. Finalise the design

After incorporating the necessary changes and suggestions it's time to finalise the design of the elevation drawing. Ensure that it aligns with the client's vision, meets building codes and regulations, and fulfils any specific requirements.

In conclusion, an elevation plan provides an accurate visual representation of a building's exterior. Whether you're a homeowner, builder, or architect, this representation is crucial to ensuring the successful completion of a building project. Understanding their importance can effectively bring your vision to reality.

Frequently Asked Questions


1. What comes first, the floor plan or the elevation plan?

Generally, the floor plan comes before the elevation plan in the design process. Elevation drawings require knowledge of the building's heights, which can only be determined once the footprint of the structure has been established.


2. How many types of elevations are there?

There are several types of elevations, including front, rear, side, and interior elevations. These elevation drawings offer different perspectives and details depending on the building's architectural design.


3. What are the four elevations of a house?

The four elevations of a house include the front, rear, left side, and right side elevations. These elevations provide a comprehensive view of the building's exterior from different perspectives, allowing designers and architects to accurately depict the structure's dimensions, features, and aesthetic appearance.
